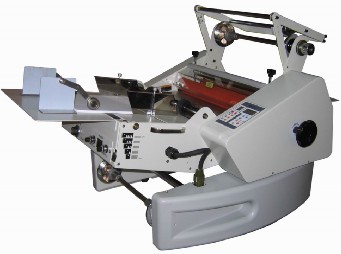

AUTO FEEDING ROLL LAMINATOR

Model 360
Max. laminating width 340 mm
Max. laminating thickness 5 mm
Max. laminating temperature 140 oC
Max. laminating speed 1.6 M/min
Recommended film Up to 250 mic
Diameter of heating roller 44 mm
Diameter of pull roller 30 mm
Power supply AC100,110,220-240V/50,60Hz
Power 650 70 0W
Dimensions (L x W x H) 1052 x 569 x 633 mm
Weight 62 kg
Stand Optional

ROLL LAMINATOR 360,650,1100MM

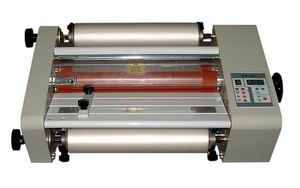

360mm

Features:
1) 8-bit microprocessor control system
2) Hot roll technology
3) Hot and cold laminating for different need
4) Digital display system
5) Adjustable motor speed according to different materials
6) Reverse button removing jammed films
7) Tension control on film mandrel
8) Metallic construction for durability

Specifications:
1) Model:  360
2) Laminating speed: 200 - 1,600mm/min
3) Laminating width: ≤330mm
4) Laminating thickness: ≤5mm
5) Operating temperature: 0 - 140°C
6) Heating method: hot roll
7) Power supply (optional): AC 110, 120, 220, 240V / 50, 60Hz
8) Power consumption: 800W
9) Dimensions: 620 x 520 x 310mm
10) Core size: 1"
11) Weight: 28kg

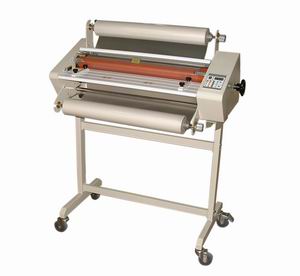

650mm

Specifications:
1) Model:  650
2) Laminating speed: 200 - 1,600mm/min
3) Laminating width: ≤635mm
4) Laminating thickness: ≤5mm
5) Operating temperature: 0 - 140°C
6) Heating method: hot roll
7) Power supply (optional): AC 110, 120, 220, 240V / 50, 60Hz
8) Power consumption: 1600W
9) Dimensions: 910 x 520 x 310mm
10) Core size: 1 / 2.25 / 3 (optional)
11) Weight: 38kg

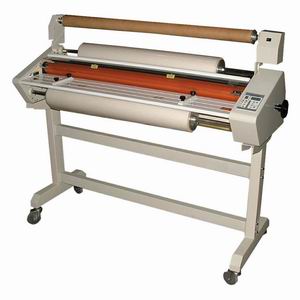

1100mm

Specifications:
1) Model:  1100
2) Laminating speed: 200 - 1,600mm/min
3) Laminating width: ≤1,050mm
4) Laminating thickness: ≤5mm
5) Operating temperature: 0 - 140°C
6) Heating method: hot roll
7) Power supply (optional): AC 110, 120, 220, 240V / 50, 60Hz
8) Power consumption: 2000W
9) Dimensions: 1,370 x 520 x 1,170mm
10) Core size: 1 / 2.25 / 3 (optional)
11) Weight: 70kg
